After deciding on this project I started to create some rough sketches of different possible designs. Then I researched a common mounting position on all bows so the mount could fit any bow on the market. I went on to 3D model my best design using Solidworks. After many adjustments of the design I finally started 3D printing.

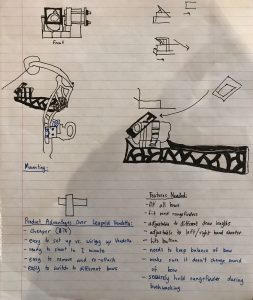

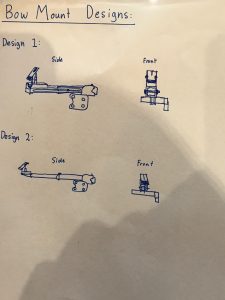

The image above shows the ideation phase of my project.

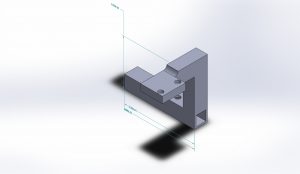

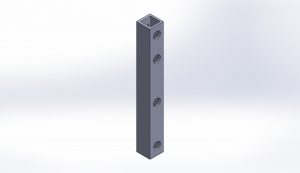

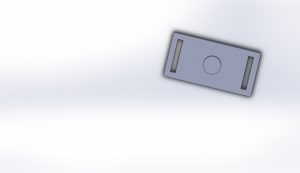

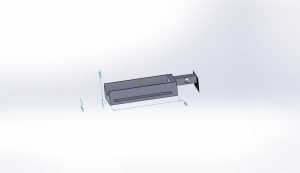

The images above show the parts modeled to create the bowmount.

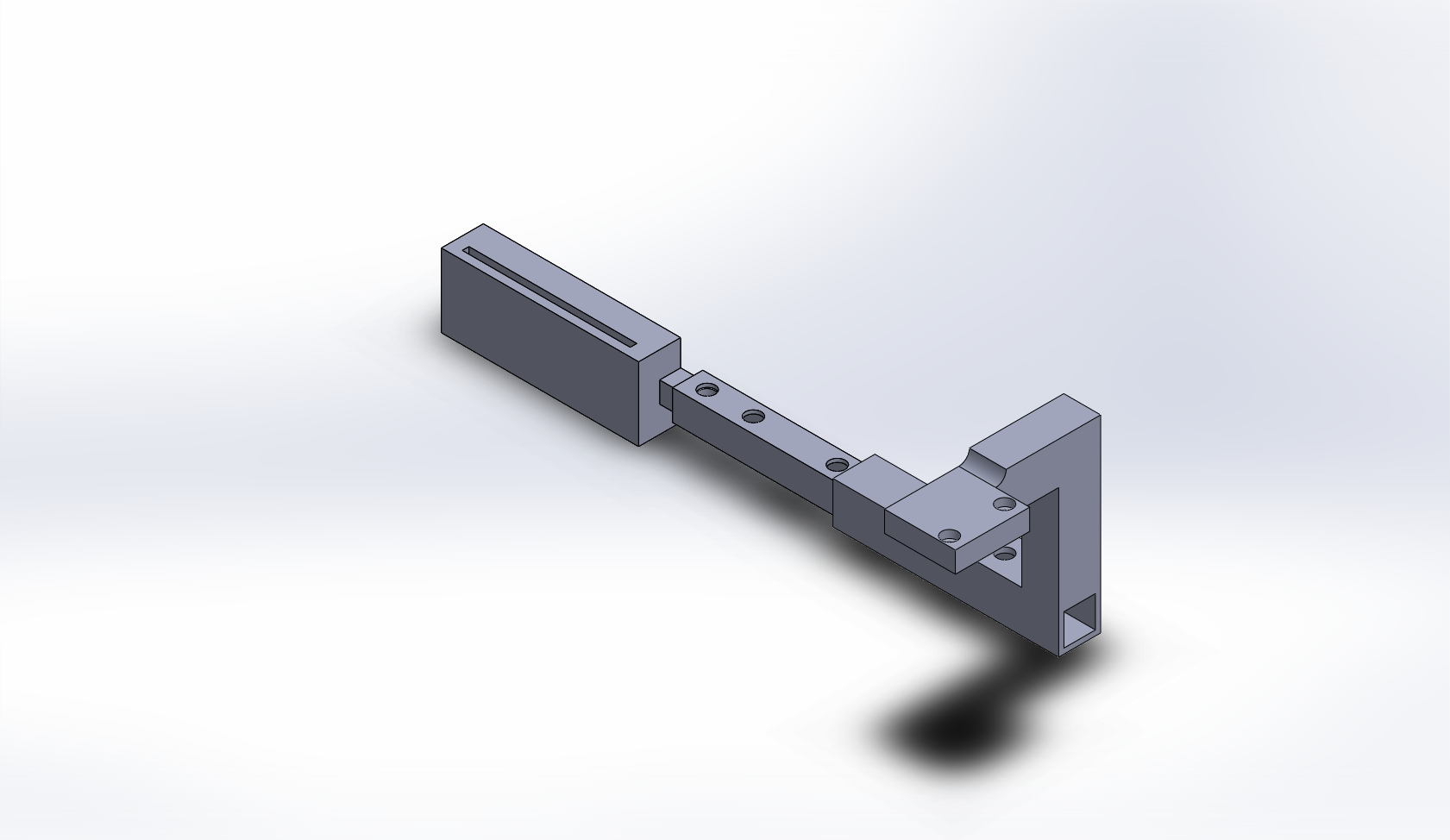

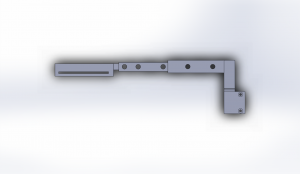

The two images above show the final assembly of the bowmount.

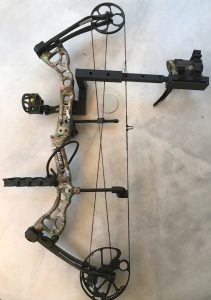

The images above show the final product 3D printed and mounted on the bow and on it’s own.
